Zoom H4n Pro

2.399,00 kn 2.279,05 kn

Brilliant Four-Track Audio Recording for Music, Film, Podcasting, and Beyond

Količina:

SKU: Z-92060108 Kategorije: , ,
Proizvođač:

Opis



The Filmmaker’s Favorite
The H4n Pro is packed with features that make it perfect for capturing audio for film. The onboard X/Y microphones deliver spectacular stereo imaging, and two combo input jacks allow you to use your favorite microphones as well. It also includes a headphone/line out jack to easily send high-definition stereo directly to your camera.



Unmatched In Concert
The Pro is perfect for capturing live performances. Capable of handling up to 140 dB SPL, it can record everything from ear-splitting heavy metal to bass-heavy EDM. Take a line-level* stereo feed from your mixing console and capture room ambience with the X/Y microphones to put your listeners front row center.

* +4dBu line-level is not supported.



Podcasters and Journalists
The H4n Pro provides the essential combination of mic’ing versatility, portability, and superior audio necessary for impactful storytelling. With support for plug-in power, you can use a lavalier to mic up your subject for podcasts or interviews. Record time-stamped WAV files to sync with video footage in post-production, or embed superior audio directly on your video in real-time through a ⅛” stereo feed.



Mobile Studio

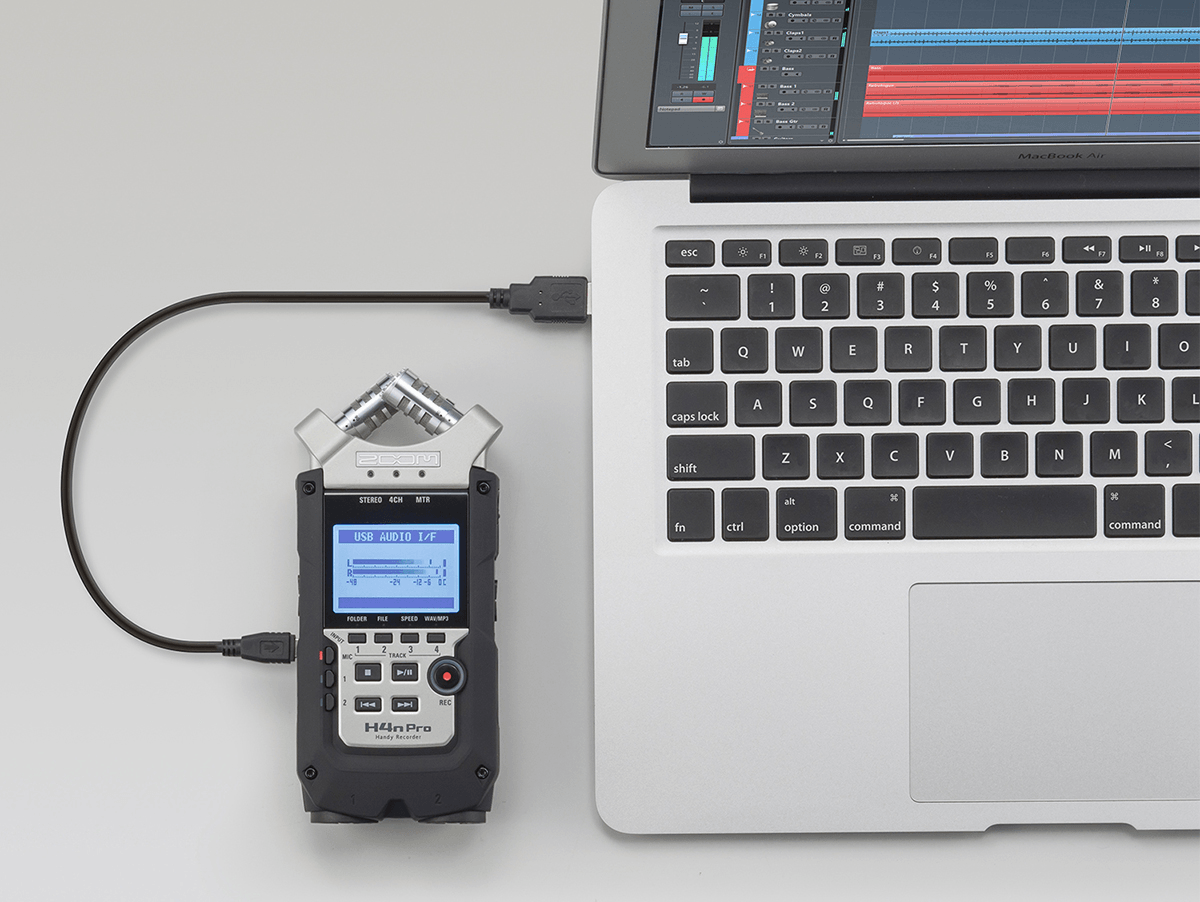

With overdubbing and punch-in features, as well as studio-grade instrument effects and emulators, you can create songs from start to finish. The Pro also functions as a 2-input/2-output USB audio interface for PC or Mac. Launch your favorite recording/editing software or use the included Cubase LE to start creating.



High-Performance Mic Preamps
The Pro features the same high performance, low-noise mic preamps as our acclaimed Zoom H5 and H6 Handy Recorders, with recording and playback at resolutions up to 24-bit/96 kHz. The improved noise floor (-120 dBu EIN) captures audio at lower volumes with less noise and fewer artifacts.



Built-in Stereo Recording
X/Y stereo recording covers a wide area while capturing sound sources in the center with clarity and definition. The angle of its two unidirectional condenser mics can easily be changed from 90 degrees for a tightly focused stereo image to 120 degrees for a wider image simply by twisting the mic capsules.

The H4n Pro provides an onboard MS decoder for Mid-Side recording with external microphones. This allows you to adjust the width of the stereo image, making it especially useful for sound design and broadcasting.



Inputs and Outputs
Inputs

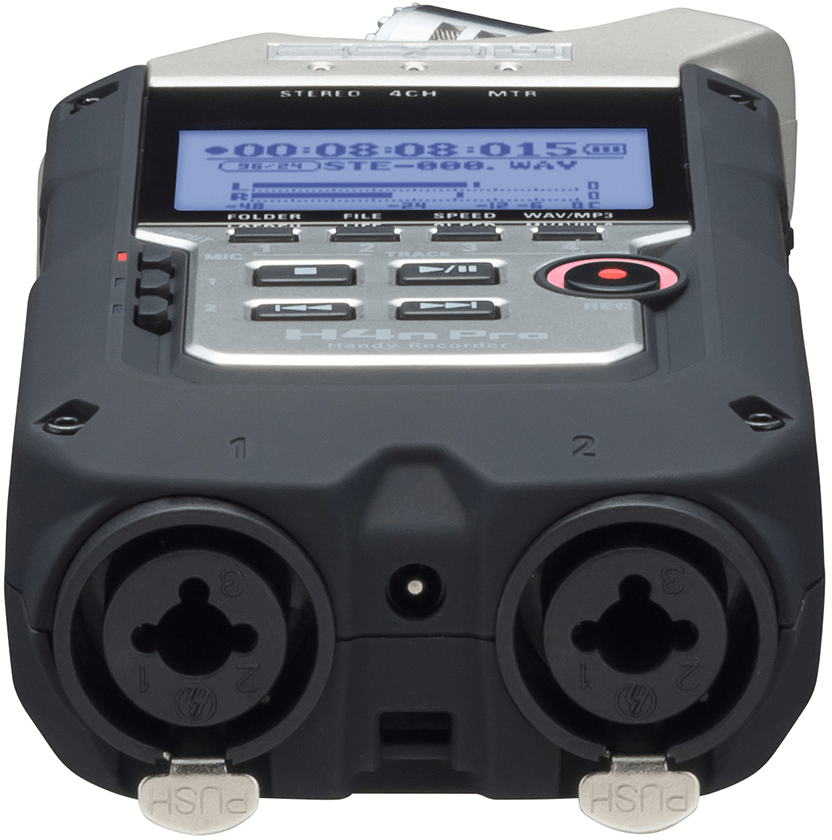

The two locking combo connectors accept either XLR or ¼” balanced/unbalanced phone cables, handling mic- and line-level signals as well as instrument-level signals. Phantom Power of +24 or +48 volts can be applied to both inputs. Plus, there’s a stereo 1/8” Mic jack for external audio sources, including lavalier microphones requiring 2.5 volts of plug-in power.

Outputs
A stereo ⅛” Line/Phone Out, with dedicated volume control, allows for headphone monitoring or connection to your DSLR, while the built-in monophonic speaker allows for quick playback reference.  In addition, a USB port enables fast file transfer, firmware updates, and use as a 2-in/2-out audio interface for computers.



Form Factor
A new rubberized, ergonomic body is perfect for use in the field or with a camera, while new locking XLR/TRS connectors ensure your mic cables stay secure. Highly portable, the H4n Pro can travel anywhere for convenient mobile recording.



Features at a Glance
Four-track simultaneous recording
High-fidelity mic preamps
Built-in X/Y stereo microphones, adjustable between 90˚ and 120˚
Record up to 140 dB SPL with X/Y microphones
Two mic/line level inputs with XLR/TRS combo connectors
Stereo 1/8″ Mic In mini phone jack
+24 or +48V phantom power for main inputs and Plug-in power (2.5V) via Mic/Line In mini phone jack
Output/headphone jack with dedicated volume control
New rubberized and ergonomic body with improved 1.9 inch backlit LCD display
Built-in reference speaker for fast playback
Records directly to SD and SDHC cards up to 32 GB
Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
Onboard Mid-Side decoding
Internal mixdown: four-track to stereo and stereo to dual mono
Up to 99 marks per recording
Built-in effects, including compression/limiting, low-cut filtering, modulation, reverb/delay and amp models
Normalize (maximum gain) and Divide (file splitting) functions
Chromatic tuner and metronome
Loop playback with user-defined start and stop points
Variable playback speed, from 50% to 150%, without affecting pitch
Variable pitch without affecting playback speed
USB port for file transfer to and from computer
2-in/2-out USB audio interface for PC/Mac computers
Mounts to mic stand or tripod, or directly to DSLR with optional Hot Shoe adapter
Runs on 2 standard AA alkaline or NiMH rechargeable batteries with up to 6 hours of operation (up to 10 hours in Stamina mode)

GENERAL
Number of simultaneous recording tracks:

2 (STEREO mode), 4 (4CH mode), 2 (MTR mode)

Number of simultaneous playback tracks:

2 (STEREO mode), 4 (4CH mode), 4 (MTR mode)

Recording time 4 GB (SDHC):

Approx. 380 minutes (WAV 44.1 kHz / 16-bit stereo track)
Approx. 68 hours (MP3 44.1 kHz / 128 kbps stereo track)
* Recording times are approximations. Actual times may differ according to recording conditions.

Maximum file size of simultaneous recording:

2 GB

Projects:

1000/card

Locate function:

Hours/Minutes/Seconds/Milliseconds

Other functions:

Punch-in/out, Bounce, A-B repeat

Effects modules:

2
STEREO / 4CH Mode: LO CUT, COMP/LIMITER
MTR Mode: PRE AMP module, EFX module

Types:

53

Patches:

60

Tuners:

Chromatic, Guitar, Bass, Open A/D/E/G, DADGAD

Metronome sound sources:

5

Variable beat:

1/4  -  8/4, 6/8, unaccentuated

Tempo:

40.0 - 250.0 BPM

A/D conversion:

24-bit × 128 oversampling

D/A conversion:

24-bit × 128 oversampling

Recording media:

SD card (16 MB – 2 GB), SDHC card (4 GB – 32 GB)

Display:

128 x 64 dots Full-dot backlit LCD

DATA TYPE - WAV FORMAT (RECORD/PLAY)
Quantization:

16- / 24-bit

Sampling frequency:

44.1 / 48 / 96 kHz

DATA TYPE - MP3 FORMAT (RECORDING)
Bit rate:

48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 kbps, VBR

Sampling frequency:

44.1 kHz

DATA TYPE - MP3 FORMAT (PLAYBACK)
Bit rate:

32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 kbps, VBR

Sampling frequency:

44.1 / 48 kHz

INPUTS
Input [1] [2]:

XLR (balanced input) / standard phone (unbalanced input) combo jack

Input impedance:

(Using balanced input) 3 kΩ or more, pin 2 hot
(Using unbalanced input) 470 kΩ or more

Input gain:

(Using balanced input) −16 dB to +43 dB
(Using unbalanced input) -30 dB to +32 dB

Built-in stereo mic:

Unidirectional condenser microphone
Sensitivity: -45 dB/1 Pa at 1 kHz
Input gain: -16 dB to +51 dB
Maximum sound pressure input: 140 dB SPL

External mic:

Mini stereo phone jack
Input impedance: 2 kΩ or more
Input gain: - 16 dB to +51 dB

OUTPUTS
Line/phone:

LINE Output load impedance: 10 kΩ or more
LINE rated output level: -10 dBu
PHONE: 20 mW + 20 mW (into 32Ω load)


Monaural speaker:

400 mW 8 Ω

Phantom power:

48V, 24V, OFF

USB:

USB 2.0 High Speed Mass Storage Class operation, Audio interface operation
(USB functions can be operated by USB bus power)

Power requirements:

DC 5V 1A AC from AC adapter (ZOOM AD-14), 2 x AA batteries

Batteries:

IEC R6 (size AA) x 2

Continuous recording time:

STEREO mode
Using built-in mics at 44.1 kHz/16-bit without headphones connected
About 6 hours using alkaline batteries or about 8 hours using NiMH (2450mAh) batteries

STAMINA mode
Using built-in mics at 44.1 kHz/16-bit without headphones connected
About 10 hours using alkaline batteries or about 12 hours using NiMH (2450mAh) batteries

Dimensions:

73 (W) × 157.2 (D) × 37 (H) mm

Weight:

294 g



* 0 dBm = 0.755 Vrms
* Design and specifications subject to change without notice.
